Wall (2D) Multi-wall
From the 2D WALL window, it is now possible to work on multiple walls at the same time; this allows you to draw CAD entities, apply and modify materials, and enter dimensions, acting on both the active wall and adjacent walls.

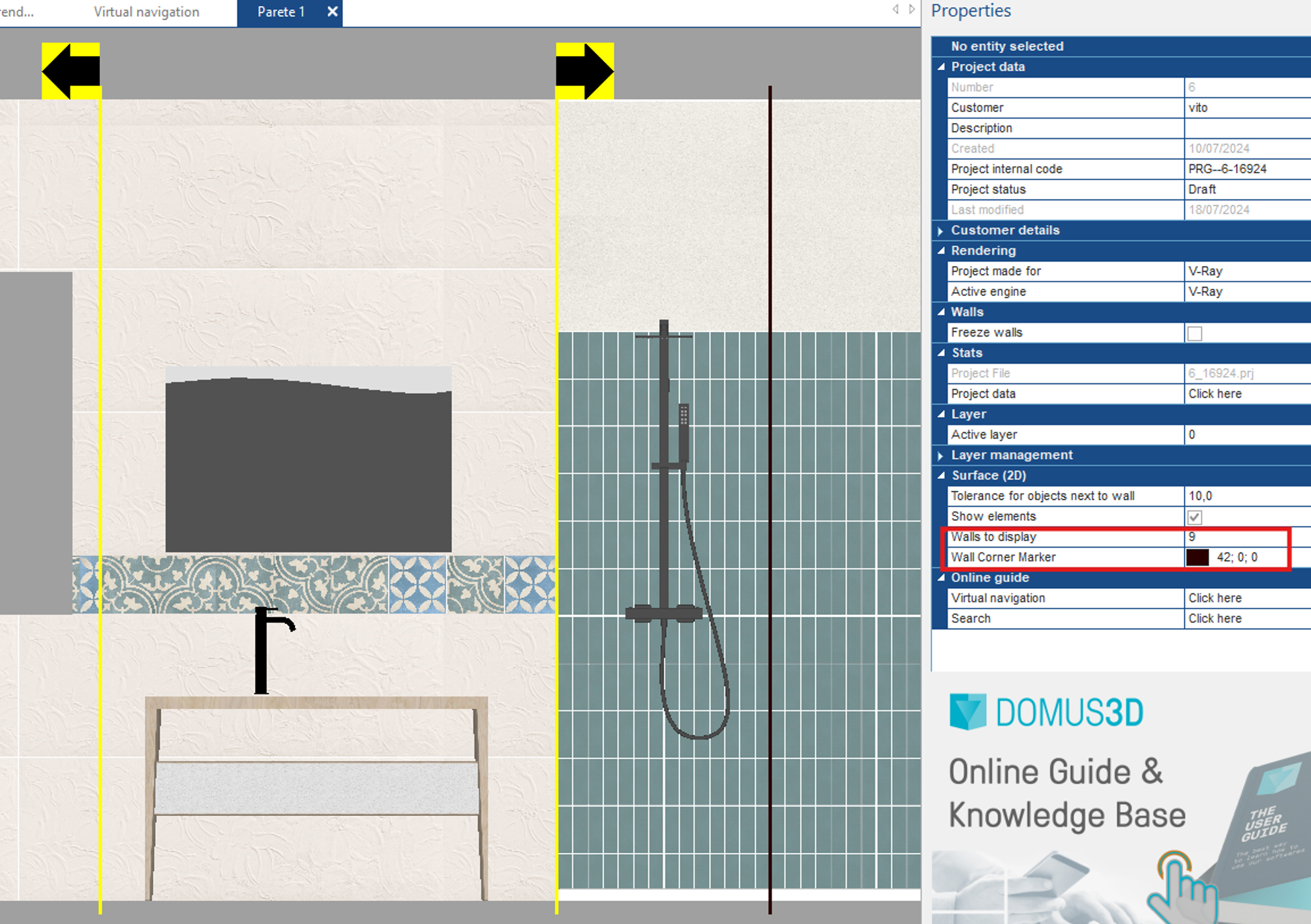

In this window, the program shows three prospects by default: the active wall, recognizable by the yellow lines bordering it, the preceding wall, and the following wall. With the arrows you can scroll over the side walls to activate them.
In the properties window on the right, there are controls for setting both the number of walls to display and the color of the wall outlines.
The ability to create a tiling area on multiple walls makes it especially quick and easy to tile the shower area.
This article is valid for the 2024 version and later.
