Once you have modified the floor plan in advanced editing, you have two options to exit and confirm the changes made:
· Exit advanced editing via the toolbar icon

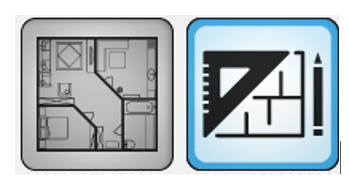

At the top right of the floor plan, there is a toolbar with two buttons. When you are in the Advanced Editing environment, the icon on the right is blue.

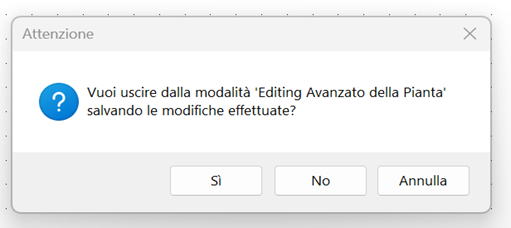

If you click on the left icon (Standard Plan), a dialog box appears where the programme asks what to do:
By pressing “Yes” > the algorithm tries to create the walls from the drawn profiles (in case of an error, the part of the floor plan that could not be constructed is highlighted, to give you a hint on how to fix it)
By pressing “No” > you return to the Standard Plan, deleting all the work done in Advanced Editing and reverting to the previous situation with the original walls (if present)
By pressing “Cancel” > you remain in Advanced Editing and can continue with the modifications
· Exit advanced editing via the command in the context menu

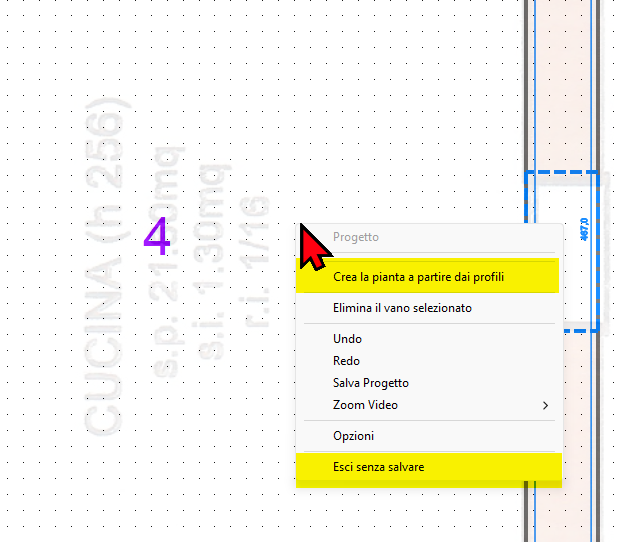

If you click the right mouse button, the context menu appears with two exit options:
By pressing “Create the plan from the profiles” > the algorithm tries to create the walls from the drawn profiles
By pressing “Exit without saving” > you will return to the Standard Plan, deleting all the work done in Advanced Editing, and reverting to the previous situation with the original walls (if present)
WARNING: if the programme fails to create the walls, an error message is displayed and the entities that caused problems with the definition of the room are highlighted in red.
